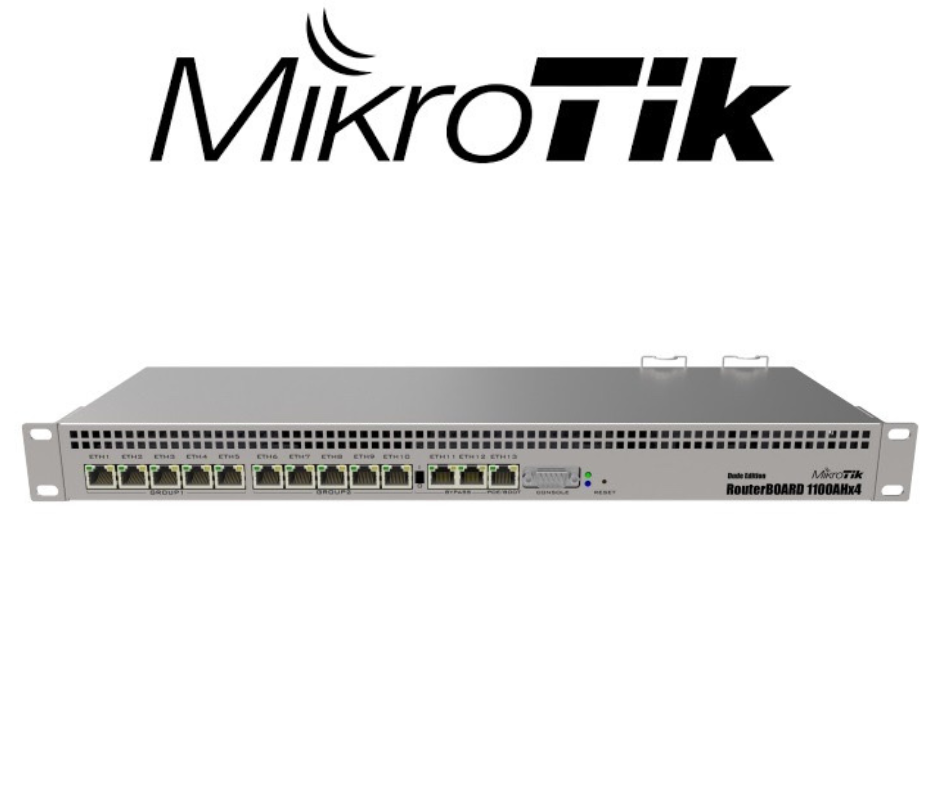

Router Mikrotik RB1100AHx4

– 13 cổng Gigabit Ethernet, 1 cổng microSD, và 1 cổng Serial console port RS232.

-CPU 4 core 1.4Ghz, Ram 1GB, Bộ nhớ NAND 128MB

– Thiết bị router HotSpot Gateway khả năng đáp ứng 500 user kết nối đồng thời

– 2 cổng nguồn 220V hoặc PoE in 20-57V, hoặc 2 cổng nối nguồn DC -48 (12-57V)

– Công suất sử dụng tối đa 33W

– Kích thước: 443 x 148 x 44 mm

Miễn phí tên miền trọn đời .

Miễn phí sửa chữa trọn đời

Miễn phí lắp đặt khi mua trọn gói

Thông số kỹ thuật Mikrotik RB1100AHx4 Dude Edition:

Specifications
Details
Product code	RB1100x4
Architecture	ARM 32bit
CPU	AL21400
CPU core count	4
CPU nominal frequency	1.4 GHz
Dimensions	443 x 148 x 44 mm
RouterOS license	6
Operating System	RouterOS
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes
Powering
Details
Number of AC inputs	2
Number of DC inputs	2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage	-48, 20-57 V
Max power consumption	33 W
Max power consumption without attachments	25 W
FAN count	Passive
PoE in	802.3af/at
PoE in input Voltage	20-57 V
Ethernet
Details
10/100/1000 Ethernet ports	13
Peripherals
Details
Extended storage	60GB M.2 SSD included
M.2 slots	2
Memory card type	microSD
Memory Cards	1
SATA ports	2x SATA3
Serial console port	RS232
Other
Details
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Certification & Approvals
Details
Certification	CE, EAC, ROHS
IP	IP20
