Mô tả

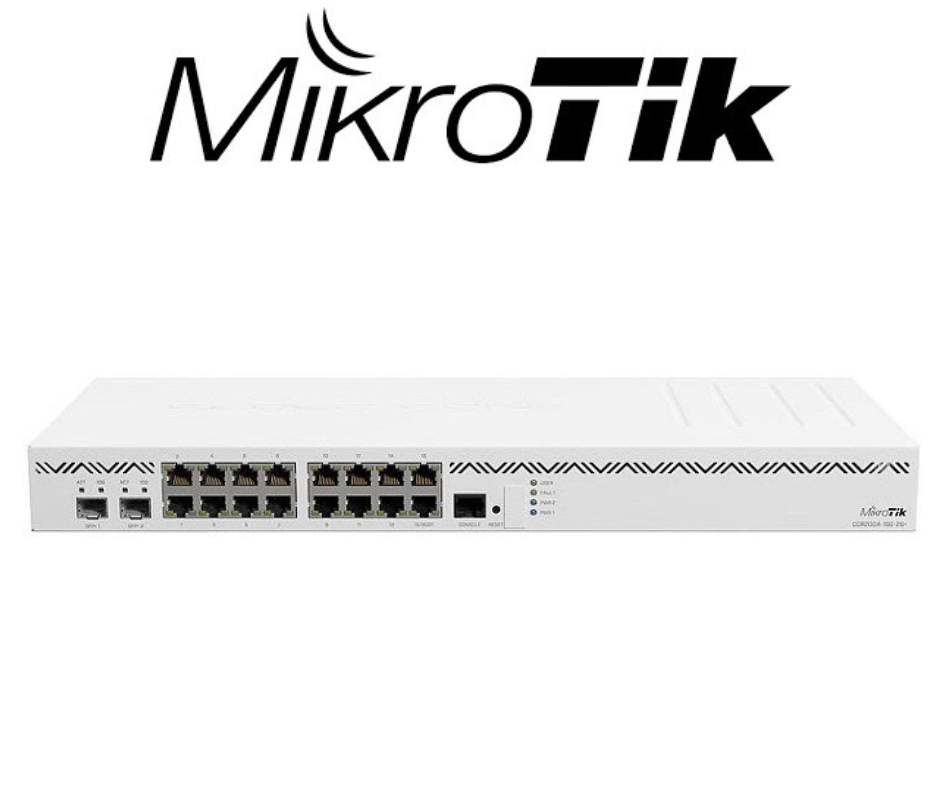

Thông số kỹ thuật Router Mikrotik CCR2004-16G-2S+ :
| Specifications | |
| Details | |
| Product code | CCR2004-16G-2S+ |
| Architecture | ARM 64bit |
| CPU | AL32400 |
| CPU core count | 4 |
| CPU nominal frequency | 1700 MHz |
| RouterOS license | 6 |
| Operating System | RouterOS (v7 only) |
| Size of RAM | 4 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
| Powering | |
| Details | |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Frequency (Hz) | 50/60 |
| Max power consumption | 48 W |
| Max power consumption without attachments | 35 W |
| FAN count | 2 |
| Ethernet | |
| Details | |
| 10/100/1000 Ethernet ports | 16 |
| Fiber | |
| Details | |
| SFP+ ports | 2 |
| Peripherals | |
| Details | |
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 0.9 |
| Other | |
| Details | |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Details | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
