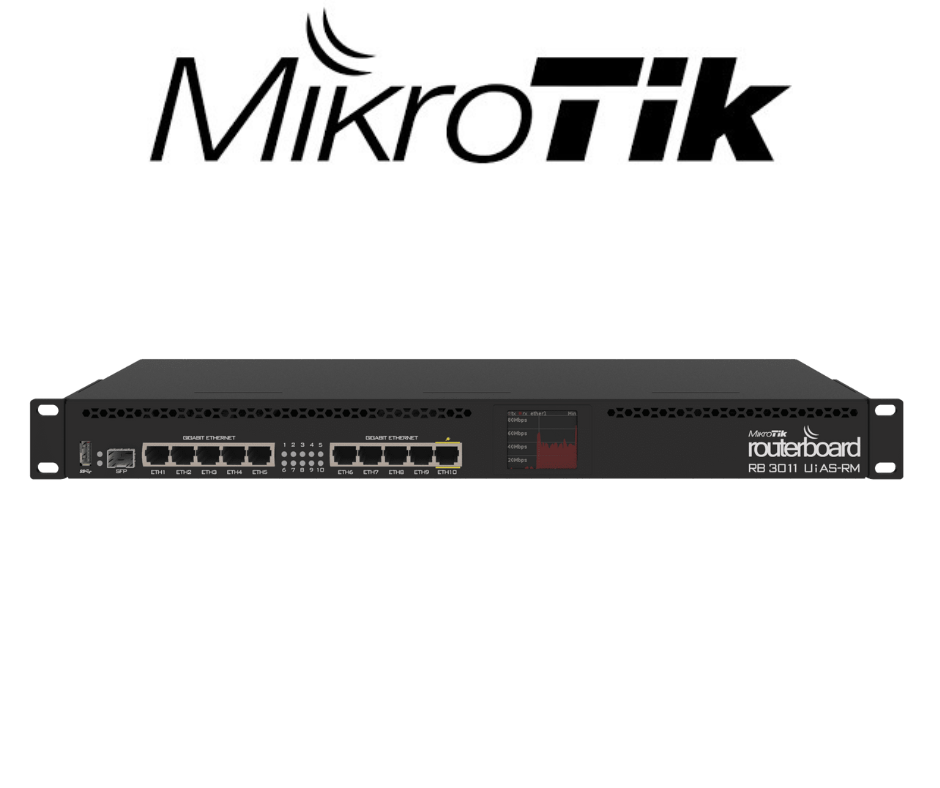

Thông số kỹ thuật Mikrotik RB3011UiAS-RM
| Specifications | |
| Details | |
| Product code | RB3011UiAS-RM |
| Architecture | ARM 32bit |
| CPU | IPQ-8064 |
| CPU core count | 2 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 443 x 92 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| IPsec hardware acceleration | Yes |
| Powering | |
| Details | |
| DC input | 2 (jack DC, PoE-IN) |
| DC jack input Voltage | 10-30 V |
| Max power consumption | 30 W |
| Max power consumption without attachments | 10 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| PoE-out | |
| Details | |
| PoE-out ports | Ether10 |
| PoE out | Passive PoE |
| Max output (input 18-30 V) | 600 mA |
| Max total out (A) | 600 mA |
| Ethernet | |
| Details | |
| 10/100/1000 Ethernet ports | 10 |
| Fiber | |
| Details | |
| SFP ports | 1 |
| Peripherals | |
| Details | |
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
| Other | |
| Details | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Details | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
