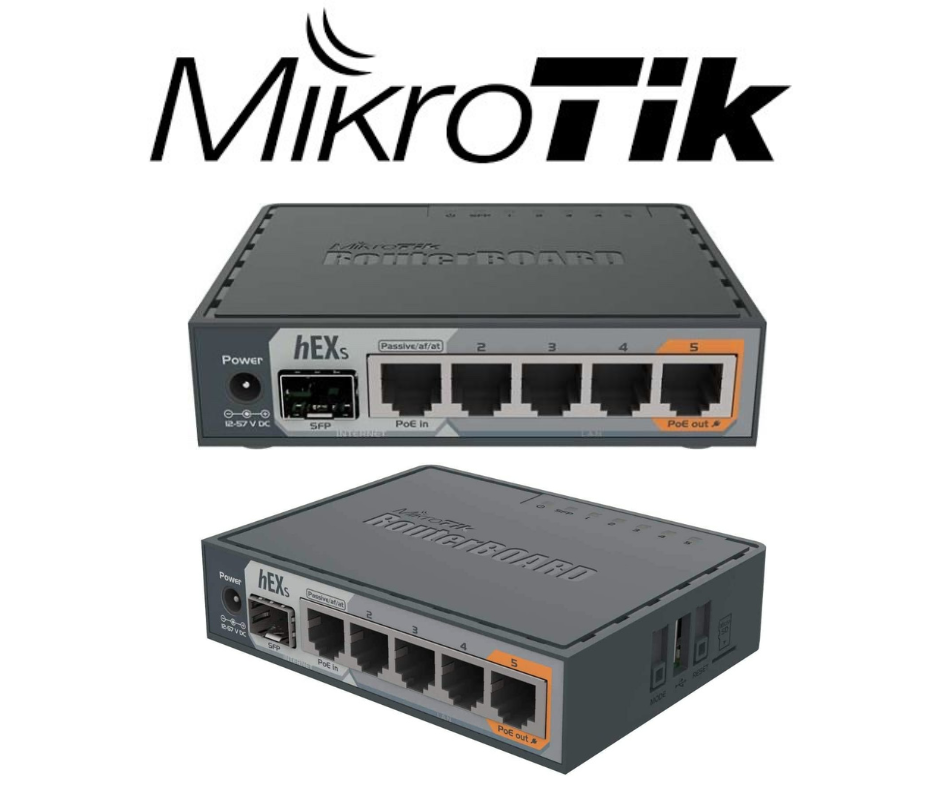

Thông số kỹ thuật sản phẩm Mikrotik RB760iGS (hEX S)
| Specifications | |
| Details | |
| Product code | RB760iGS |
| Architecture | MMIPS |
| CPU | MT7621A |
| CPU core count | 2 |
| CPU nominal frequency | 880 MHz |
| CPU Threads count | 4 |
| IPsec hardware acceleration | Yes |
| Dimensions | 113 x 89 x 28 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| Details | |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 24 W |
| Max power consumption without attachments | 6 W |
| FAN count | Passive |
| PoE-out | |
| Details | |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input < 30 V) | 500 mA |
| Max out per port output (input > 30 V) | 500 mA |
| Max total out (A) | 500 mA |
| Ethernet | |
| Details | |
| 10/100/1000 Ethernet ports | 5 |
| Fiber | |
| Details | |
| SFP ports | 1 |
| Peripherals | |
| Details | |
| Memory card type | microSD |
| Memory Cards | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Other | |
| Details | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Certification & Approvals | |
| Details | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
